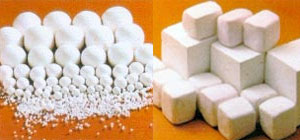

Catalyst Bed Support

ALUMINIA BED TOPPINGS AND SUPPORTS

Al2O3 (% min) 99.0
SiO2 (% max) 0.20
Fe2O3 (% max) 0.20
TiO2 (% max) 0.30
Na2O + K2O (% max) 0.20
Code No. BSS-5 Balls BSS-10 Balls BSS-20 Balls RR-30 Ring BSP-10
Tablets
BSL - 10 Lumps
Typical Size (mm) 12 25 12 25 12 25 19 x 9 x 19 10 x 10 25 50
Specific Gravity (kg / lit) 3.9 3.9 3.8 3.8 3.7 3.7 - 3.8 3.8 3.8
Bulk Density (kg / lit) 2.1 1.95 2.05 1.95 2.0 1.9 1.0 2.0 1.9 1.9
Water Adsorption (%) 1.5 1.5 3.0 3.0 6.5 6.5 16 3.0 3.0 3.0
Apparent Porosity (%) 5 5 10 10 20 20 45 10 10 10
Cold Crushing Strength kg. (Average D.W.L) 500 1000 400 900 300 800 50 400 1000 2000

ALUMINA CATALYST CARRIERS

Code No. CS - 30 Spheres CR-40 Rings CP-30 Pallets
Al2O3 (% min) 99.5 99.5 99.5
SiO2 (% max) 0.10 0.05 0.10
Fe2O3 (% max) 0.10 0.05 0.10
Na2O + K2O (% max) 0.30 0.30 0.30
Typical Size (mm) 15 25 19 x 9 x 19 10 x 10
Bulk Density (kg / lit) 1.3 1.3 1.0 1.2
Water Adsorption (%) 16 16 18 18
Apparent Porosity (%) 40 40 45 45
Cold Crushing Strength kg. (Average D.W.L) 150 200 50 100

ALUMINA GRINDING MEDIA

Al2O3 (% min) 94.0
SiO2 (% max) 3.0
CaO (% max) 1.5
MgO (% max) 0.5
Code No. GMS-1 Balls GMS-1 Tablets
Typical Size (mm) 15 35 15 x 15
Specific Gravity (kg / lit) 3.9 3.9 3.9
Bulk Density (kg / lit) 2.3 2.0 2.2
Water Adsorption (%) 0 0 0
Apparent Porosity (%) 0 0 0
Cold Crushing Strength kg. (Average D.W.L) 1000 3000 1000

ALUMINA GEL / ACTIVATED ALUMINA / IRON OXIDE DESULPHURISATION MASS

Iron Oxide mass is used for the removal of H2S from gas stream. The mass is normally supplied in the form of extrudates and granules dispersed on wood shavings.

Salient Features

  • High H2S adsorption.
  • Good Mechanical strength.
  • Low pressure drop across bed.
Chemical Analysis
Fe2O3 % 55 - 56
MnO2 % 7 - 10
SiO2 % 4 - 6
Al2O3 % 4 - 6
Na2O % 4 - 6
Na2O % 1 - 2
L.O.I % 15 - 20
Physical Properties
Size (mm) Dia
Length
8 - 10
10-14
Bulk Density (kg / lit)   .07 + 0.15
Crush Strength kg / cm2¬†(Average)   7.0
Granules
Total Active Iron (as Fe2O3) % min 28
Wood Shaving % 8 - 10
Moisture % 35 - 40
PH of 10% suspension of Oxide mass on dry basis % 8.0 - 8.5
Bulk Density % .85 + 0.10

ZINC OXIDE

Large quantities of Zinc Oxide are used in many industries like rubber, paints and cosmetics. It is also used for the removal of sulphur from gas streams. Specifications of our products suitable for paints and rubber industries are given below

Characteristics OZ - 66 OZ - 63
Zinc Oxide (as ZnO) (% min) - 99.0
Moisture Content (% max) (% max) - 0.50
Sleeve residue on 45 micron IS Sleve (% max) 0.10 0.15
Loss on Ignition (% max) 0.50 0.50
Matter Insoluble in Water (% max) 0.25 0.20
Matter Insoluble in Hcl (% max) - 0.15
Matter Insoluble in 14% Acetic Acid (% max) - 0.10
Acidity (as H2SO4) (% max) - 0.02
Oil absorption (% max) 11 - 16 -
Sulphur Content (% max) 0.05 -
Copper (as Cu) (% max) - 0.001
Manganese (as Mn) (% max) - 0.003
Lead (as Pb) (% max) - 0.10
USE (% max) Paint Industry Rubber Industry
